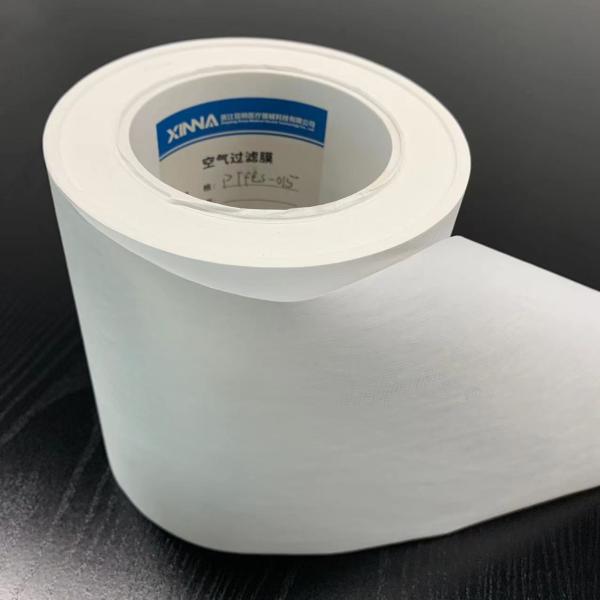

Microporous ePTFE Membranes Laminated with Polypropylene Backing for Protection Vents
When it comes to protection vents and barriers within devices, polytetrafluoroethylene (PTFE) membrane filters play a crucial role. They allow for the passage of air and other gases, but they also serve as a barrier to larger molecules such as water. This remarkable composition makes PTFE membranes ideal for use in protective vents. For instance, within a transducer protector, a thin, dime-sized PTFE membrane is incorporated into the shell and functions as a vent. It allows air to flow through while simultaneously repelling contaminants. Given the sensitive nature of PTFE, additional support is necessary, and the microporous PTFE membranes we supply are made using bi-axially stretched ePTFE and come laminated with a polypropylene backing for higher mechanical strength, easy handling and excellent flexibility. ePTFE membrane filters are generally available in the form of rolls, which can be punched to the desired size and formats as per requirements.
ePTFE membranes are naturally hydrophobic filter materials that function as a barrier to confine fluids while allowing smooth passage of air and gas. Hydrophobic ePTFE membranes can be employed in various medical applications such as vents on intravenous (IV) infusion sets or as antibacterial air filters for transducer protectors. When compared to other types of membrane filters, ePTFE venting membranes stand out due to their exceptional combination of hydrophobic, water entry pressure resistance, broad chemical compatibility and oleophobic properties.
Features of Microporous ePTFE Membranes
- Naturally Hydrophobic
- Polypropylene or PET support material for increased strength
- High air flow rate
- High pressure resistance
- High mechanical strength
- Temperature resistant up to 130°C
- Resistant to most aggressive acids, alkalis, and solvents
- Lot-to-lot quality consistency
Specificatons Available
| ePTFE with support backing | 0.10 µm | 0.22 µm | 0.45 µm | 1.0 µm |
| Flow Rate (air) (L/min/cm2) | 2.5 | 4.5 | 7.5 | 17 |
| Bubble Point | >20.3 psi | >14.1 psi | >8.5 psi | >4.3 psi |
| Thickness | 130 µm | 130 µm | 120 µm | 90 µm |
| Max. Operating Temp | 130°C | 130°C | 130°C | 130°C |
Applications
With their unique properties, ePTFE membranes and filters have become indispensable consumables in many industries worldwide. Hydrophobic ePTFE membranes are extensively used for air venting and gas filtration in medical, healthcare and bio-tech industries, their common uses including
- IV infusion sets
- Transducer protectors
- HPLC sample preparation
- Aerosol sample handling
- Air venting and gas filtration
- Special corrosive solvents filtration
·
